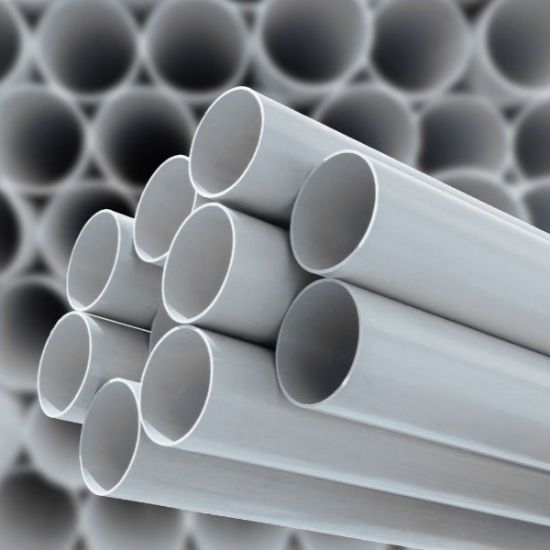

Nuplast SWR (Soil, Waste and Rainwater) drainage system includes a wide range of soil. waste and rain water plumbing products for residential and industrial developments. Pipes are manufactured as per NS-206 (Nepal Standard).
3Meter
110mm
Plain Socket 6kgf/cm²
NS-206
PVC Pipe
Benefits
Light Weight
Corrosion Free
Durable
Cost Effective And Easy
Lowest Bacrerial Growth
Thermal Insulation
Smoothest Inner Surface
Temperature Up To 60°
PVC Solvent For Tight Joints
Ring Seal Jointing
The assembly procedure for the PVC pipe mechanical joint system is outlined below, tefone making any joint inspect all fittings
1.Clean the inside of socket. Remove all traces of mud, dirt, grease. gravel and clean elastomeric sealing ring.
2.Form the ring into a heart shape by pinching a portion of ring from inside. Insert into the socket and release to seat into the groove. Factory supplied pipes are provided with a 15 chamfer. Mark the insertion depth on spigot portion of pipe. Clean and apply lubricant to insertion depth before pushing into the socket.
3.If pipe need to be cut, it should be cut perpendicular to the axis of the pipe. Then it should be chamfered property.
4.Align the socket and spigot correctly in the horizontal and vertical planes (before insertion, ensure that no sand or dirt adheres to the lubricated surface of the pipe). Care should be taken that the spigot end is inserted in the socket at the correct angle.
5.Push the spigot into the socket until it reaches the depth of entry mark, do not over insert. This must be done manually, a portion of ring from inside. Insert into the socket and release to seat into the groove.
Extreme Conditions
Cold: Under extremely cold conditions, special care must be taken to ensure excess solvent cement is not allowed to enter into the pipeline as this could result in sohvent cracking of the pipe.
Hot: In hot weather, particularly when solvent cementing long lengths, the pipe should be well ventilated
About Nuplast
Nuplast Industries Private Limited, a subsidiary of Lucky Group - Nepal, have been engaged in manufacturing and distribution UPVC Pipes and Fittings, CPVC Pipes and Fittings, PVC Compound, Rigid/ Commercial Pipes, Agricultural Pipes, Electrical Listy, Conduits and Masterbatches. With its state of art manufacturing facility in Simara Bara Nepal, the plant started with PVC Compounds in early 2000's and within a span of time have increased the product sizes and now catering to various segments across Nepal. The company to deliver world class plumbing & electrical solutions to its customers across the country and to become a house hold name for pipe and fitting solutions.
Company has obtained both 150 certification and NS certification, demonstrating commitment to quality and safety. The ISO certification, which is recognized globally, demonstrates that company has implemented robust processes for quality management, environmental management, and occupational health and safety management. The NS certification, which is specific to Nepal standard confirms that products and services meet the specific requirements of this market. These certifications demonstrate dedication to providing high-quality products and services, while maintaining a safe and sustainable working environment and committed to maintaining these certifications and continuously improving our processes to ensure that meet and exceed the highest standards in industry.
The pipes manufactured at Nuplast Industries are specially formulated, tested and relied by its customers to maintain water purity, resist and delayed corrosion and long lasting than the other pipes manufactured in Nepal
Being a manufacturer in Nepal, the company also is affiliated and accredited with SWADESHI Abhiyaan-BE NEPALI-BUY NEPALI, a national movement that have been working towards empowering domestic manufacturers and improving their standards of living.
