• NS-40:2042
• PN12.5
SIZE(Outer Diameter): 315MM

• NS-40:2042
• PN12.5
SIZE(Outer Diameter): 200MM
• Wall thickness(mm): 19.15 Approx.
• Weight(Kg/mtr): 10.394 Approx.

• NS-40:2042
• PN12.5
SIZE(Outer Diameter): 125MM
• Wall thickness(mm): 12 Approx.
• Weight(Kg/mtr): 4.072 Approx.

• NS-40:2042
• PN12.5
SIZE(Outer Diameter): 63MM
• Wall thickness(mm): 6.1 Approx.
• Weight(Kg/mtr): 1.044 Approx.

• NS-40:2042
• PN12.5
SIZE(Outer Diameter): 25MM
• Wall thickness(mm): 2.55 Approx.
• Weight(Kg/mtr): 0.173 Approx.

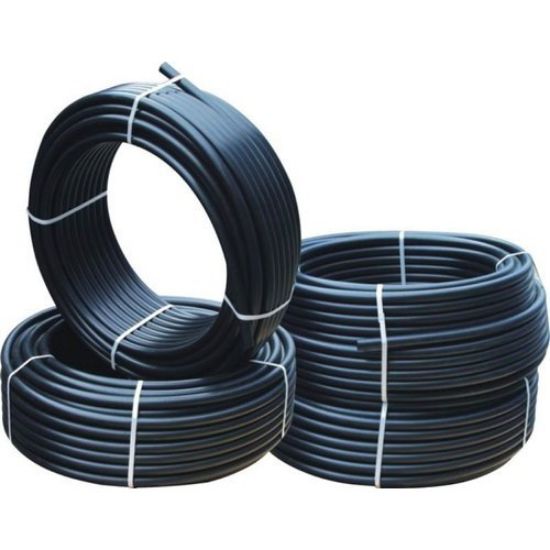

The pipes are black in colour possessing a smooth internal and external surface. The pipes have a designed lifespan of 50 years at 27 Degree centigrade and for a stress of over 50 KG/cm square. They have this perfect homogenous pipe joints with same properties as the pipe and fitting and are as strong.

• Features<
Light in Weight (Wt. 1/7th of G.I pipe) Excellent corrosion and chemical resistance Inert to most acidic and alkaline solutions High flow characteristics Light in weight Easy to handle & transport Excellent flexibility combined with strength Smooth inner walls - minimizes frictional losses Safe for potable water supply Resistance to Microorganisms Free from any Odour and Taste Tough. Maintenance Free Properties of the pipe

HDPE Pipes are enormously useful in Bore Well, Water Supply, Lift Irrigation, Sprinkler, Drip Irrigation, Pesticide Dispersal, Sewerage/Drainage, Cable Ducting, Natural & other gases etc. and are great for the urban and rural areas.

• Application<

Potable water supply

Air-conditioning & Refrigeration

Telecommunication conduits

Extraction of Fumes

Water mains

Distribution

Flood Irrigation (Suction & Delivery pipes in pump sets)

Petrochemical Industry

Sprinkler Irrigation (Crops, Lawns, Golf course, Gardens)

Domestic Sewage System

Drip irrigation (Plantations, Orchards, Nurseries) Service Pipes

Sanitary System

Fertilizer Industry

Panchakanya HDPE pipes and fittings come with NS marks and are manufactured by the latest technology to comply with the international standard specification using world's best virgin polymer in the company's modern plant situated at Kotihawa, Bhairahawa. The quality of the product is controlled at every step of production and tested in the well-equipped laboratory under the supervision of skilled and experienced technicians.
