JANATICS: FRL Unit Without Pressure Gauge

Sorry - this product is no longer available

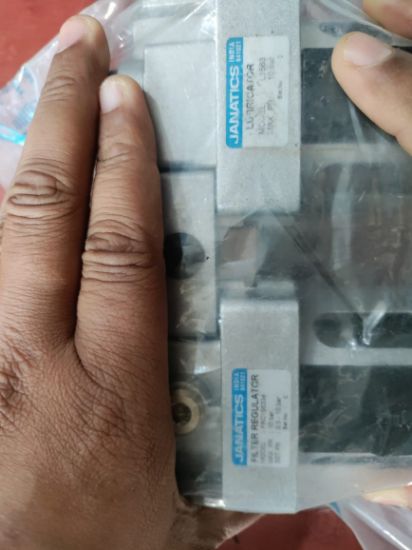

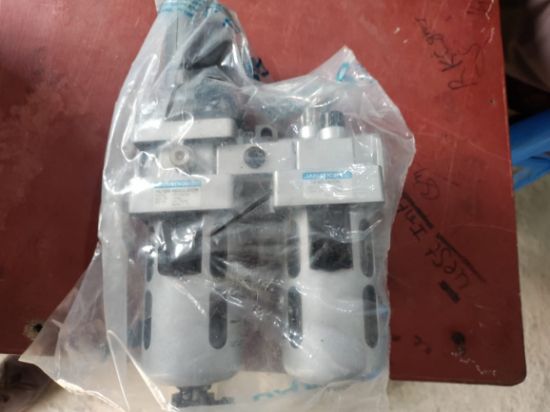

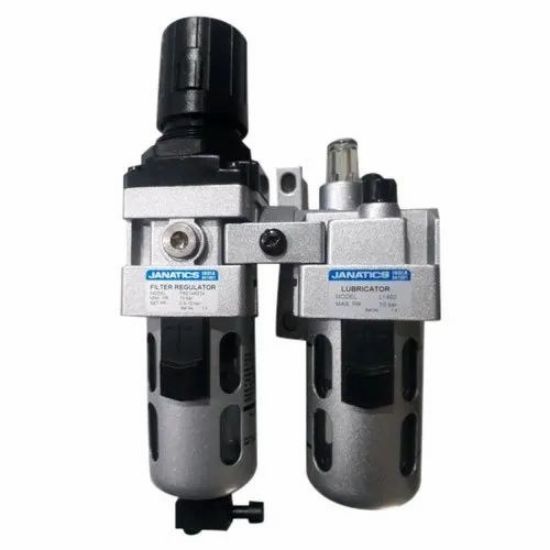

Janatics Filter Regulator and Lubricator (FRL) Unit Without Pressure Gauge

Port Size : 1/2 Inch

Usage/Application: Industrial

Working Pressure: 10 Bar

Filter Rating : 40 Micron

Regulating Pressure Range: 0.5-10 bar

Manufacturer: JANATICS

Orders above 1000 inside ringroad (KTM valley) only are freely delivered.

Delivery date: 1-2 days

NRs 40,714

NRs 45,237

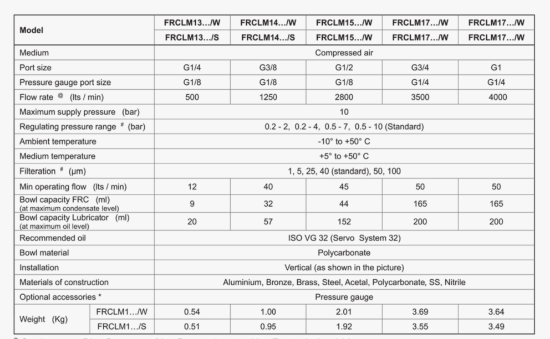

Specifications

Modular type for easy and fast maintenance
Suitable for wall mounting
Filter
Bronze filtering element
Separator and shield for efficient moisture separation
Press type manual drain for easy operation
Regulator
Diaphragm operated, relieving type
Pressure compensated by Balanced poppet
Flow compensated in models FRCLM14, FRCLM15 and FRCLM17 for faster response
Non raising Press to Lock adjusting knob for locking at any set pressure.
Lubricator
Fog/Mist type Lubricator
Fine adjustment of lubrication
Lubrication proportional to flow
Steel bowl guard, bayonet type on FRCLM14, FRCLM15 and FRCLM17 models and threaded type on FRLM13 model
Good flow and regulating characteristics.

Precautions

Note the direction of flow before installation and connect piping accordingly
Flush pipings for dirt, dust, rust and other foreign particles
Install in clean atmosphere
Nipples of taper threads ( R ) to be used with teflon tape. Ensure teflon tape doesn't enter the unit during tightening. Nipples of straight threads ( G ) to be used with sealing washer
Polycarbonate bowls may get damaged and possibly fail if exposed to synthetic oils, thinner, solvents, trichloroethylene, kerosene or other aromatic hydrocarbons
